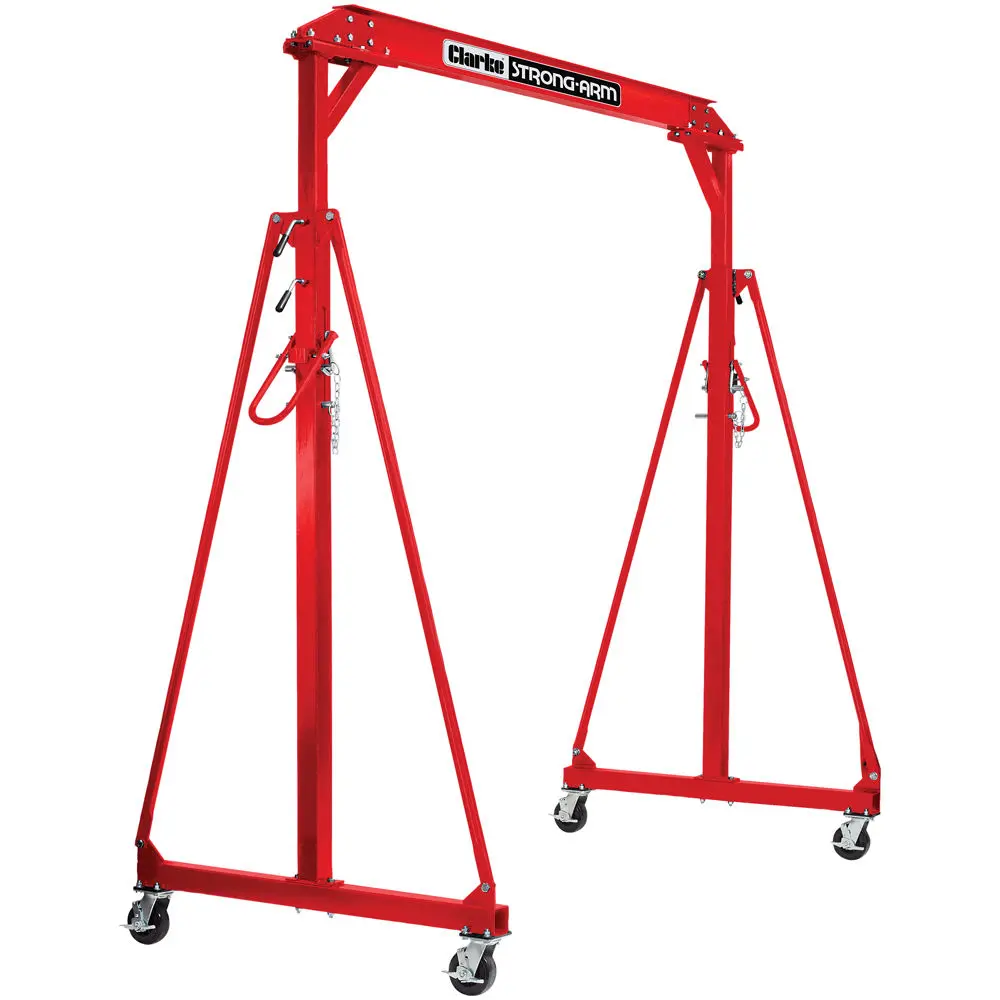

Clarke CWGC1000 1 Tonne Portable Gantry Crane

• SPECIFICATIONS
• Portable and adjustable design making the crane ideal for use in garages or workshops where heavy, level lifting is essential.
• Working height can be adjusted from 2520mm – 3600mm with a maximum load of 1000kg
• Four swivel castors with brakes.
• Solid steel construction.
• 'I' beam cross member for added strength making it suitable for maintenance, manufacturing, repairs and other heavy loading tasks
• Quick to assemble and disassemble allowing it to be easily transported from different locations.
• Note: Lifting hoist / tackle sold separately.

Product description

The Clarke CWGC1000 1 Tonne Portable Gantry Crane is suitable for working environments where level heavy lifting is required. With a strong, sturdy steel construction with cross member beam as well as four swivel and brake castors for moving it easily into position.

Maximum Height: 3600mm (141.7”)

Minimum Height: 2520mm (99.2”)

Gantry Width: 2600mm (102.4”)

Maximum Depth: 1200mm (47.2”)

Maximum Load Capacity: 1000kg

Weight: 128kg
